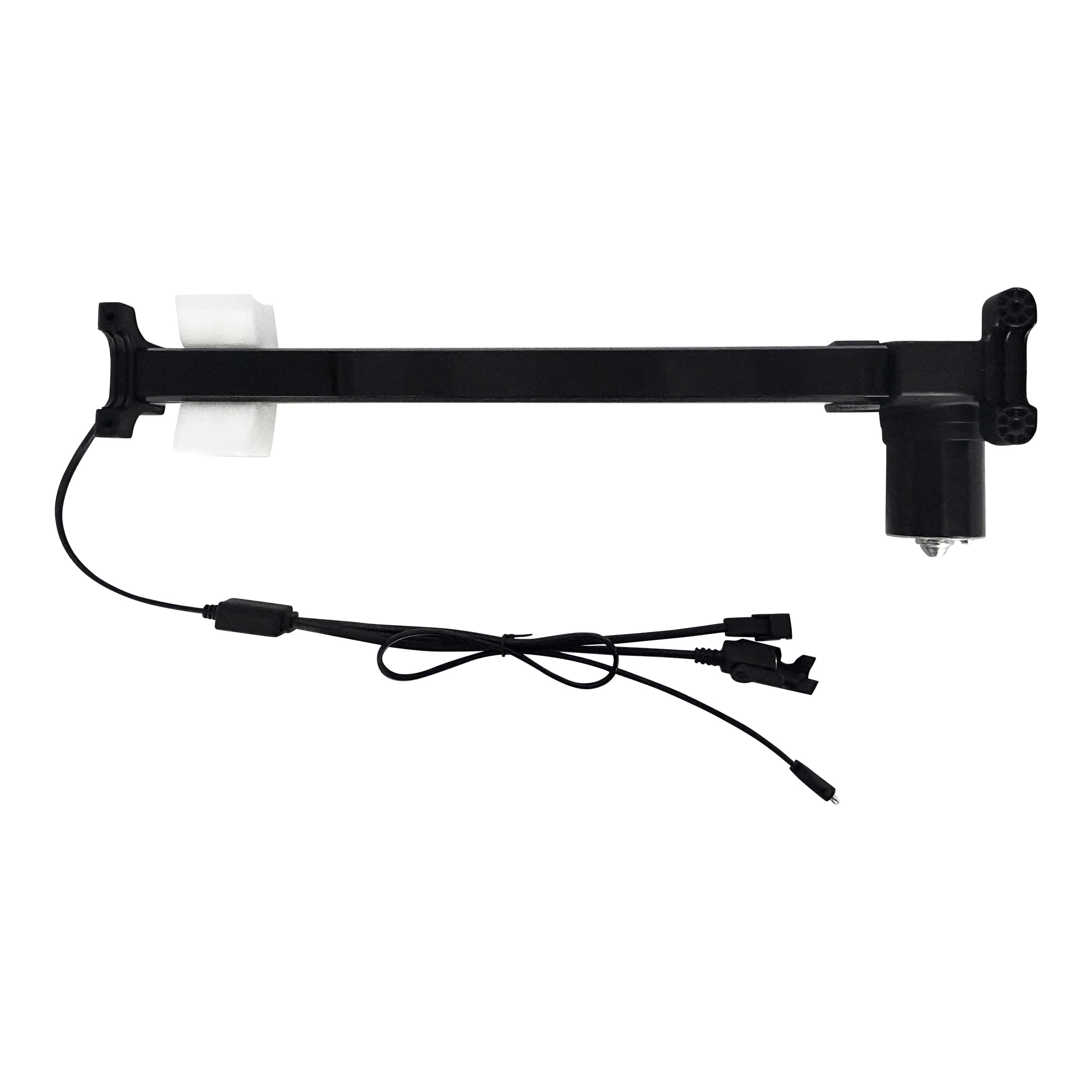

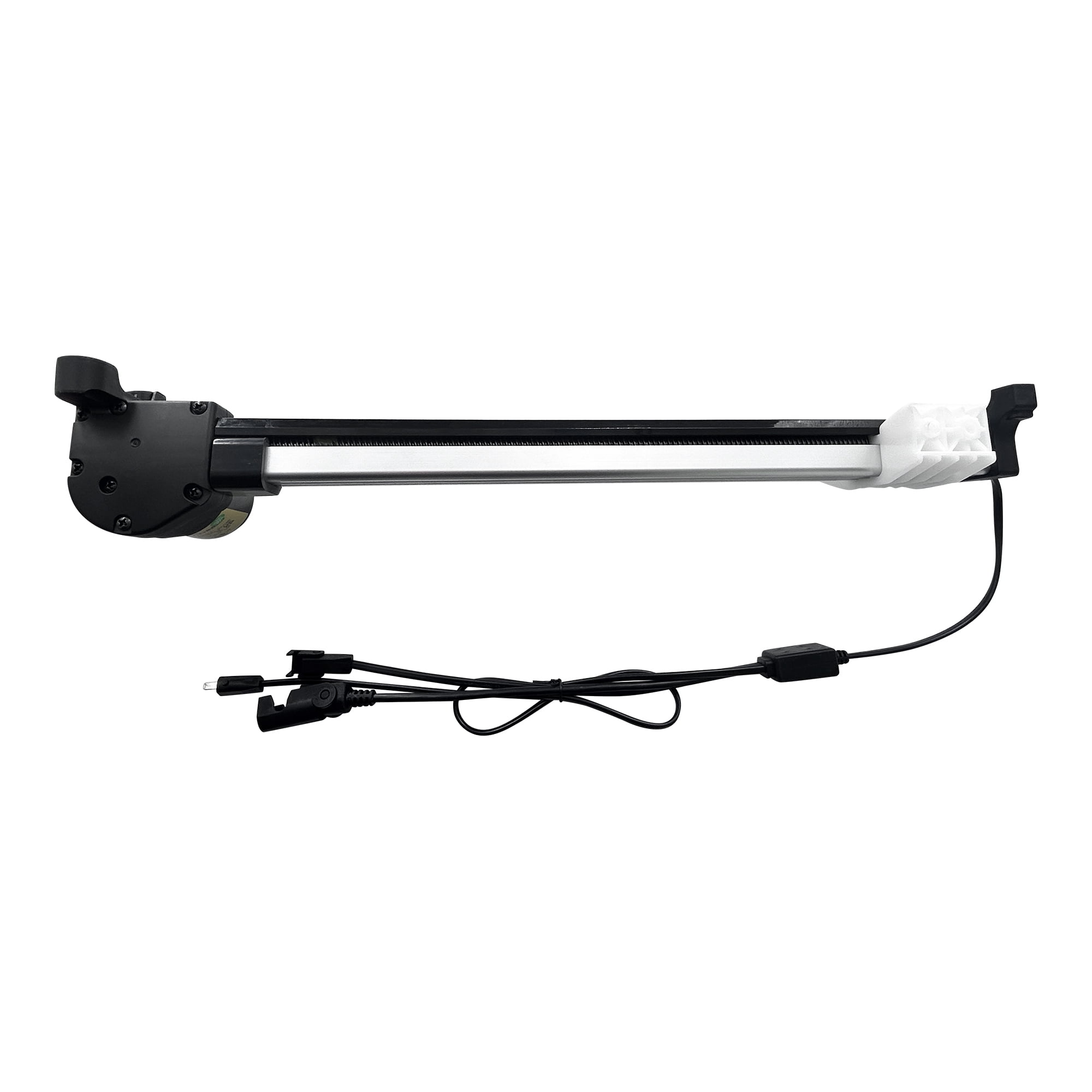

Power Recliner Motor Model DL-DT1006A-054 Linear Actuator Replacement for Lift Chairs

<p>This is power recliner lift chairs motor model DL-DT1006A-054 replacement. The motor can replace motor model DL-DT1006A-054 and DL-DT1006A-054-01. It has 3 Cables: 2 Pin Flat Round Power Transformer Connection, 2 Pin Female Connector Head Motor Connection, 5 Pin Hand Control Plug Connection. Application in indoor electric sofa, massage chair and etc, check Label and also troubleshoot the switch/remote or power supply before ordering a motor.</p><p>Please Note: If you are not sure if this the correct motor, please send us a picture of your current motor and we can tell you if this is the correct current replacement.</p><p><br></p>

• This is Power Recliner Lift Chairs Motor Model DL-DT1006A-054 Replacement

• The Motor can replace Motor Model DL-DT1006A-054 and DL-DT1006A-054-01

• Minimum install size: 138 mm/5.43 inches, Stroke: 326 mm/12.83 inches, Max. Load: 800N

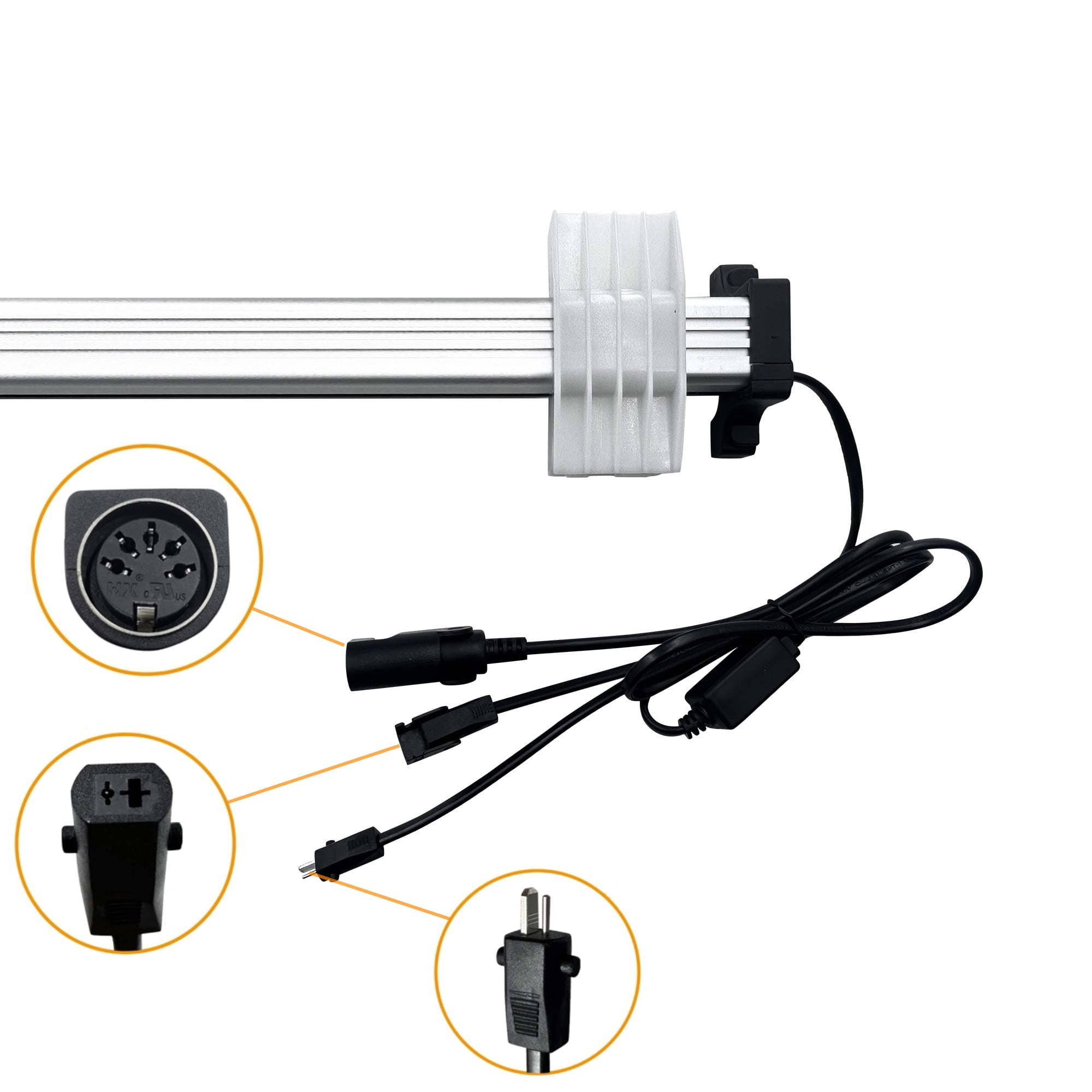

• 3 Cables: 1x 2 Pin Flat Round Power Transformer Connection, 1x 2 Pin Female Connector Head Motor Connection, 1x 5 Pin Hand Control Plug Connection

• Application in indoor electric sofa, massage chair and etc, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.

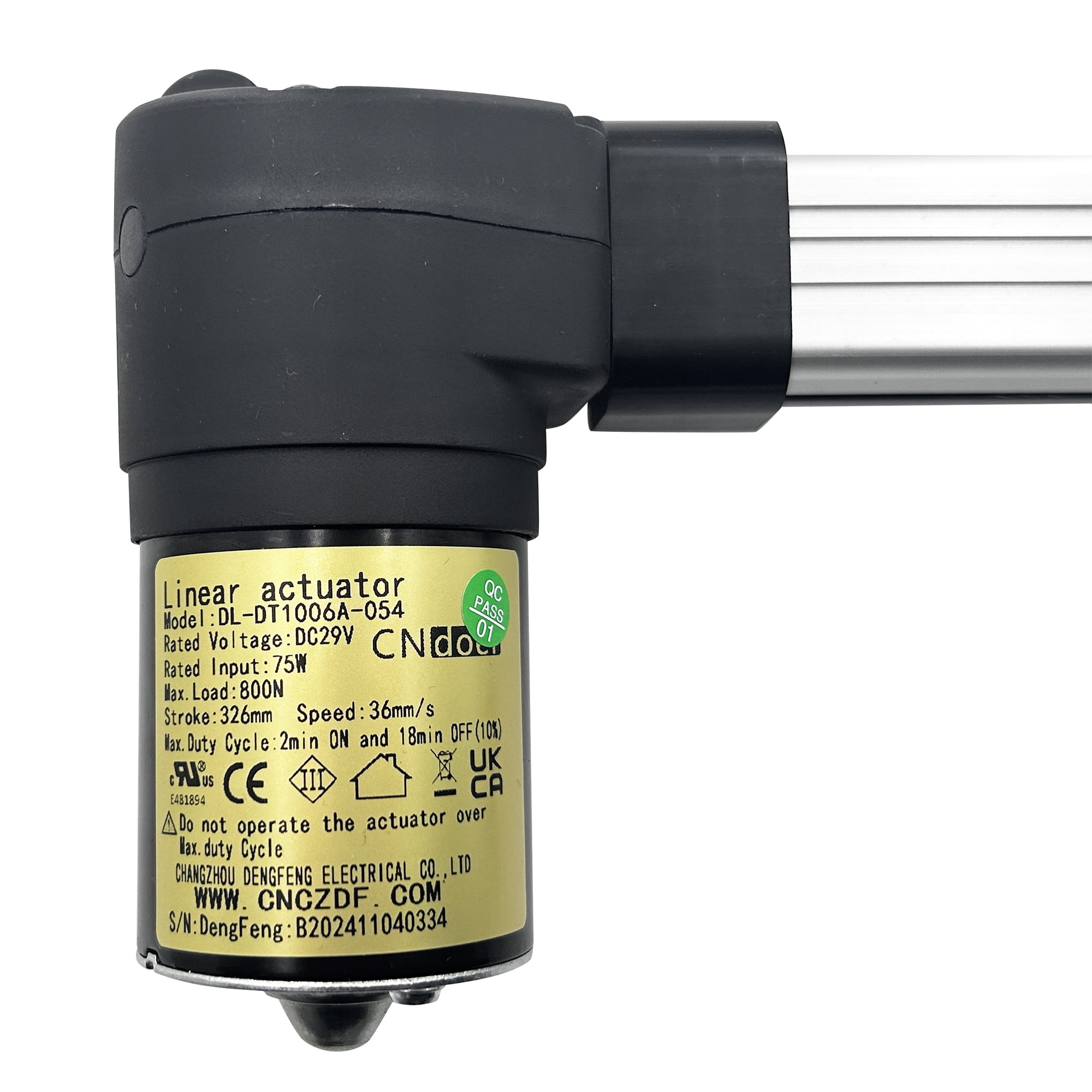

  Technical data:

  Manufacturer: Dengfeng

  Model: DL-DT1006A-054

  Stroke: 326 mm/12.83 inches

  Minimum install size: 138 mm/5.43 inches

  Max. Load: 800 N

  Package Dimensions: 24.8 x 6.9 x 3.9 inches

  Item Weight: 4.1lb
