Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover [5056100]

<p></p><p><strong>5056100 - Water Resistant ST-Blade Fuse Block with Cover</strong></p><p>This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. &nbsp;Now with wing screws for toolless access.</p><p><strong>Features:</strong></p><ul><li>Water-resistant design with a standard ring or spade-type terminals</li><li>Allows for simple wiring with standard tools</li><li>Accepts a wide range of wire sizes</li><li>Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required</li><li>Accepts ATO and ATC fast acting blade fuses</li><li>Accepts ATO/ATC-Style Low Profile Circuit Breakers</li><li>Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire</li><li>5056100 meets ABYC/USCG insulation requirements</li><li>Tin-plated copper busses and fuse clips</li><li>Includes four write-on circuit labels</li><li>Spare fuse and fastener storage in cover</li><li>Wing screws designed for tool-free installation of cover to meet ABYC compliance</li></ul><p><strong>Technical Specifications:</strong></p><ul><li>Cover - yes<ul><li>Maximum Voltage - 32V DC</li><li>Bus Material - Tin-plated Copper</li><li>Mounting Holes - Accepts 1/4" (6mm) screws</li><li>Terminal Screws - 4 x # 8-32 with captive star lock washer</li><li>Wire Size - Input - (1) 8 AWG to 4 AWG&nbsp;</li><li>Wire Size - Load - (4) 16 AWG to 10 AWG&nbsp;</li></ul></li></ul><p><strong>In the Box:</strong></p><ul><li>5056100 Busbar</li><li>Instruction Manual</li></ul><p>*Sold as an Individual</p> <p><b>Specifications:</b></p><ul><li>Box Dimensions: 2"H x 8"W x 8"L WT: 0.7 lbs</li><li>UPC: 632085505615</li></ul><br><a href="https://productimageserver.com/literature/quickGuide/94754QG.pdf" rel="nofollow">Quick Guide (pdf)</a>

• 5056100 - Water Resistant ST-Blade Fuse Block with Cover

  This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint

•  Now with wing screws for toolless access

• Features:

  • Water-resistant design with a standard ring or spade-type terminals
  • Allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Spare fuse and fastener storage in cover
  • Wing screws designed for tool-free installation of cover to meet ABYC compliance

  Technical Specifications:

  • Cover - yes
    • Maximum Voltage - 32V DC
    • Bus Material - Tin-plated Copper

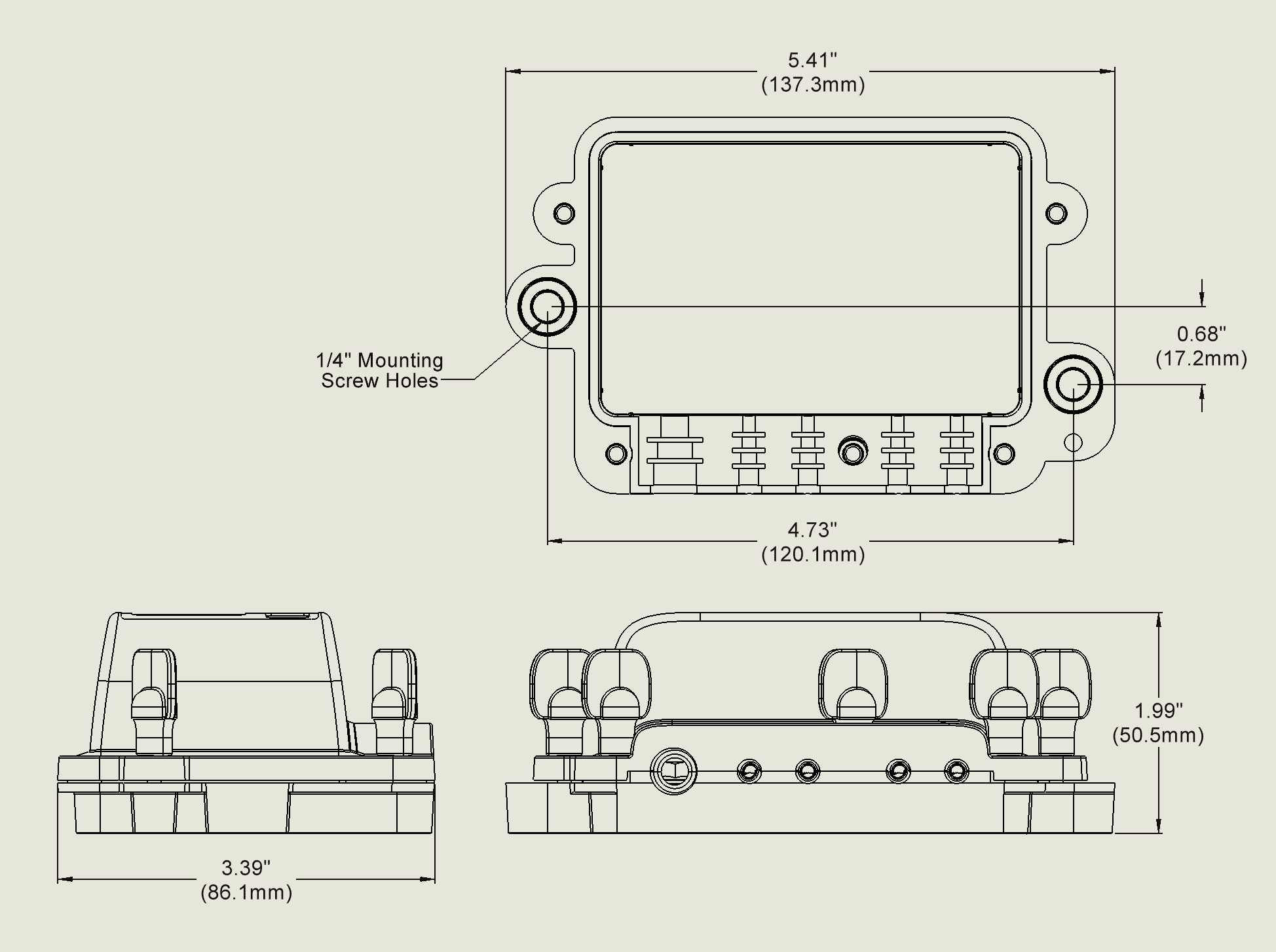

    • Mounting Holes - Accepts 1/4" (6mm) screws
    • Terminal Screws - 4 x # 8-32 with captive star lock washer
    • Wire Size - Input - (1) 8 AWG to 4 AWG
    • Wire Size - Load - (4) 16 AWG to 10 AWG

  In the Box:

  • 5056100 Busbar
  • Instruction Manual

  *Sold as an Individual
