2.5G Ethernet PoE Splitter 12V/2A with DC Female Connector, DC 5.5 * 2.1mm Plug, 48V PoE to DC 12V/2A 24W Output, Compliant with IEEE 802.3af/at for DIY & Various Scenarios (PS5712TG-B)

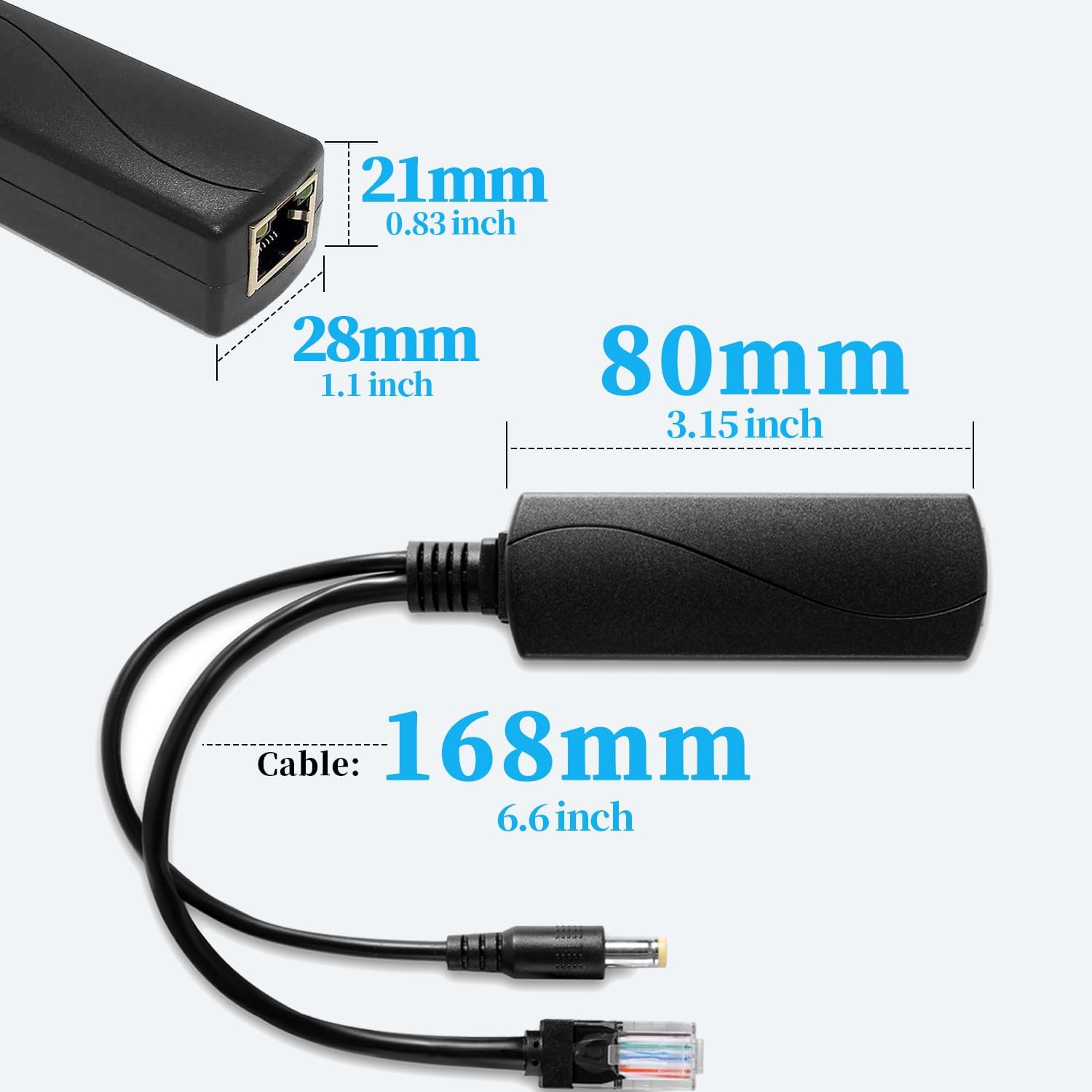

Note:2.5Gbps speed performance requires 2.5GB capable networking infrastructure, please eusure your network environment support 2.5G Ethernet.Specifications：Support international standard IEEE802.3 af/at(30W);POE port Support 2.5Gbps data transmissionPD support 44V - 57V voltage transmission, Automatically detects power supply from PSE power supply module12V 2A power output, easy to access Poe network for non-PoE terminalSupport the isolation circuit protection, can effectively protect electrical equipment.Support the short circuit, overvoltage protection1500V high voltage isolationModel: PS5712TG-BTransfer Rate: 10/100/1000Mbps, 2.5GbpsPower: Input 48V DC /0.6A, Output 12V/2AStandard: IEEE802.3 af/IEEE802.3 at(30W)TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC outputStandard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE 802.3 atLED: Yellow PoE lampTemperature: Work within -20~50°,Storage within -30~60°Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing)DC Plug: 5.5 x 2.1mmDimension: 27.5 x 2.8 x 2.3cmWeight: 0.05kgPackage Content:1 * POE Splitter (PS5712TG-B)1* Female DC connector

• 【DC 12V/2A Output】 48V PoE convert to DC 5.5*2.1mm Plug 12V/2A adaptive power output, the DC plug only deliver power.
• 【2.5Gbps Speed】 Support up to 2.5Gbps Internet speed, enable your device run at full speed. Provide super fast Ethernet transmission without delay.
• 【Multiple Protection】Support the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.
• 【Extra DC Connector for DIY】 It includes an additional DC female connector. If the standard DC5.5*2.1mm port is incompatible with your device, you can use this connector to power it by directly linking to the positive and negative terminals. This expands its application scenarios and offers more possibilities for DIY customization.
• 【How to Use】Using IEEE802.3af/at PoE switch or PoE injector power the splitter, the PoE splitter will separate PoE into power and data via RJ45 port and DC port, provides power and data for Non-PoE terminal device like IP camera.
